Removal and Installation

LH side

1. If equipped with a power point on the LH quarter trim panel, disconnect the battery ground cable.

   Both sides

   Fig 1: Removing/Installing Safety Belt D-Ring Cover

   Courtesy of MAZDA MOTORS CORP.
2. Remove the safety belt D-ring cover.
   Fig 2: Removing/Installing Safety Belt D-Ring Bolt

   Courtesy of MAZDA MOTORS CORP.
3. Remove the safety belt D-ring bolt.
   Fig 3: Removing/Installing Liftgate Scuff Plate Trim Panel

   Courtesy of MAZDA MOTORS CORP.
4. Remove the pin-type retainers and the liftgate scuff plate trim panel.
5. Position the liftgate weatherstrip aside.
   Fig 4: Removing/Installing Cargo Net Hold-Down

   Courtesy of MAZDA MOTORS CORP.
6. If equipped, remove the cargo net hold-down.

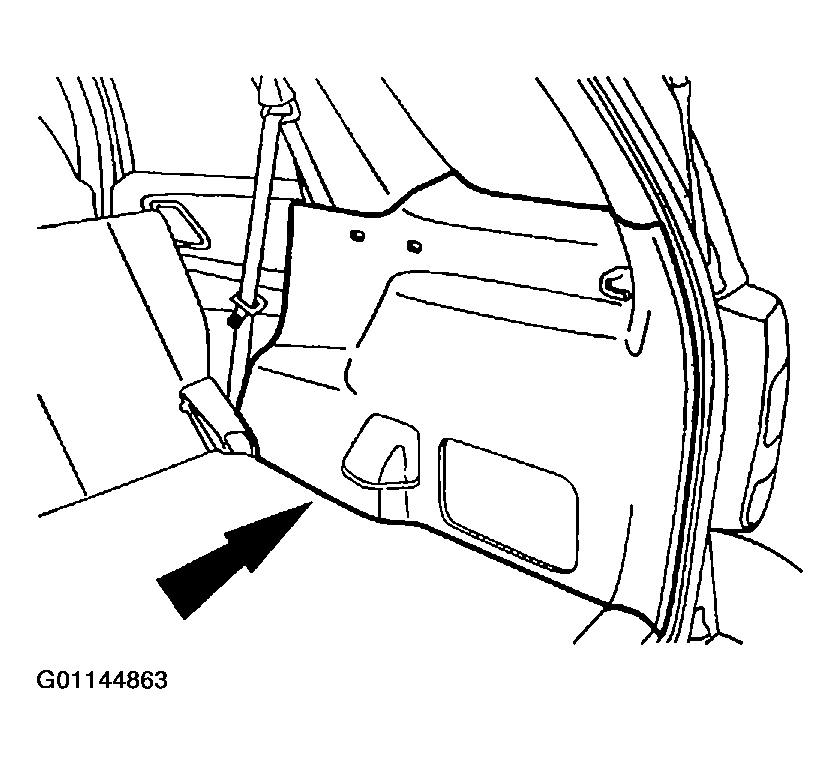

   Fig 5: Removing/Installing Rear Quarter Trim Panel

   Courtesy of MAZDA MOTORS CORP.
7. Remove the rear quarter trim panel.
   1. Insert a tape-wrapped screwdriver between the D-pillar trim panel and rear quarter trim panel.
   2. Push the screwdriver in the direction of the arrow and remove the rear quarter trim panel.
8. Disconnect the accessory socket connector. (Left side)
   Fig 6: Removing/Installing C-Pillar Trim Panel (1 Of 2)

   Courtesy of MAZDA MOTORS CORP.
   Fig 7: Removing/Installing C-Pillar Trim Panel (2 Of 2)

   Courtesy of MAZDA MOTORS CORP.
9. Remove the C-pillar trim panel.
10. To install, reverse the removal procedure.
