Sliding Door Garnish Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Pull the sliding door garnish toward you, then disengage clips A from the body, and remove the sliding door garnish.
Install in the reverse order of removal.

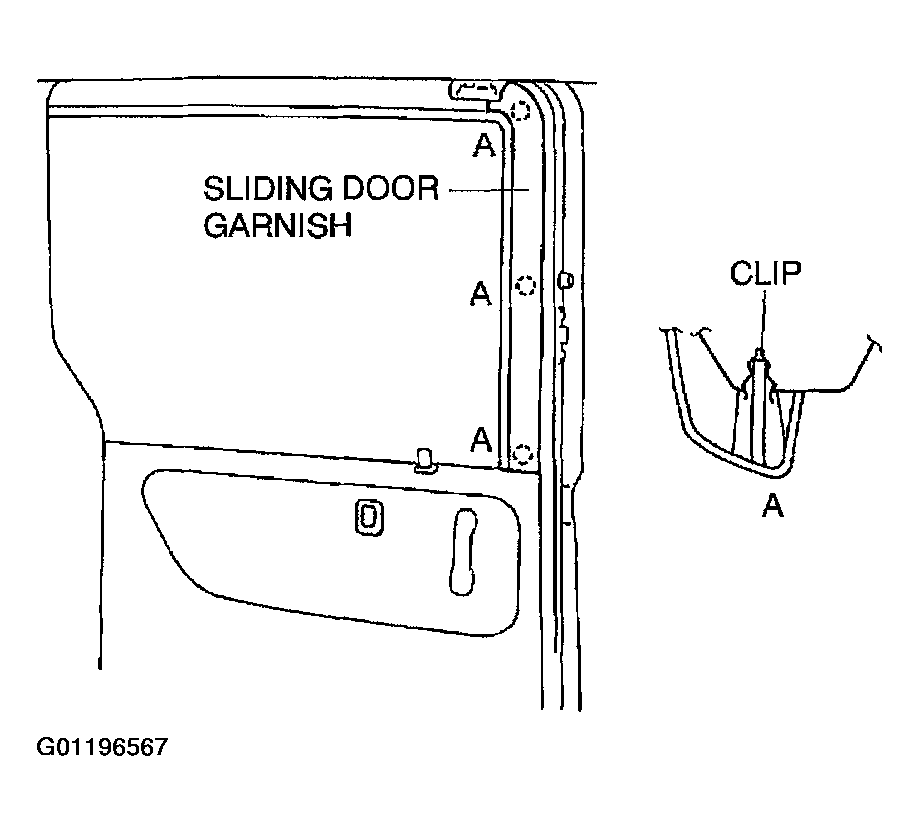

Fig 1: Removing Sliding Door Garnish

Courtesy of MAZDA MOTORS CORP.
