A-Pillar Trim Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

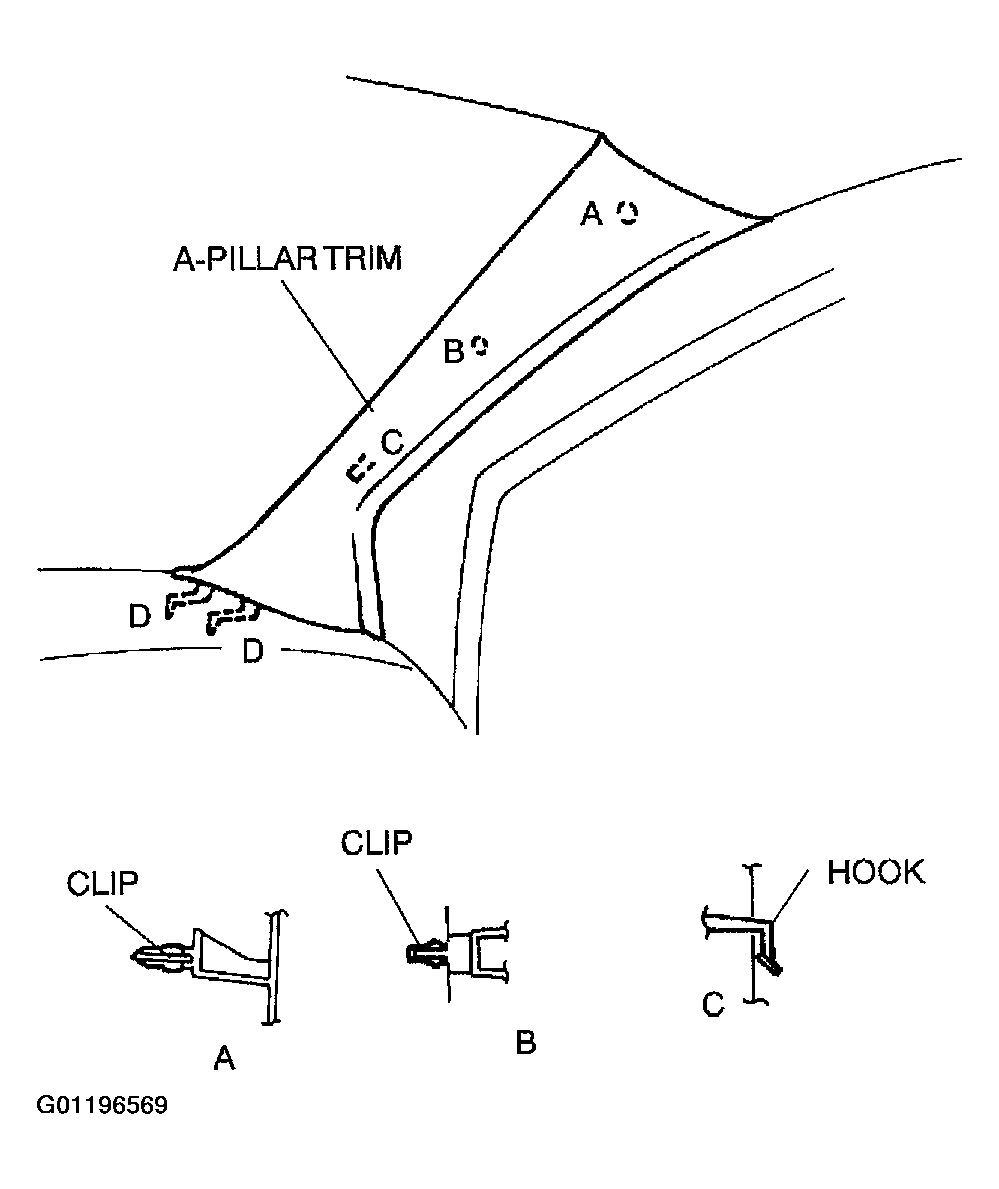

- Turn the seaming welt over.
- Disengage clips A and B using a fastener remover.
- Pull the A-pillar trim upward, then disengage hooks C and D, and remove the A-pillar trim.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
