Body Side

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the sliding door circuit contact connector.
Inspect the sliding door circuit contact terminals for continuity using an ohmmeter.
- If not as specified, replace the sliding door circuit contact.

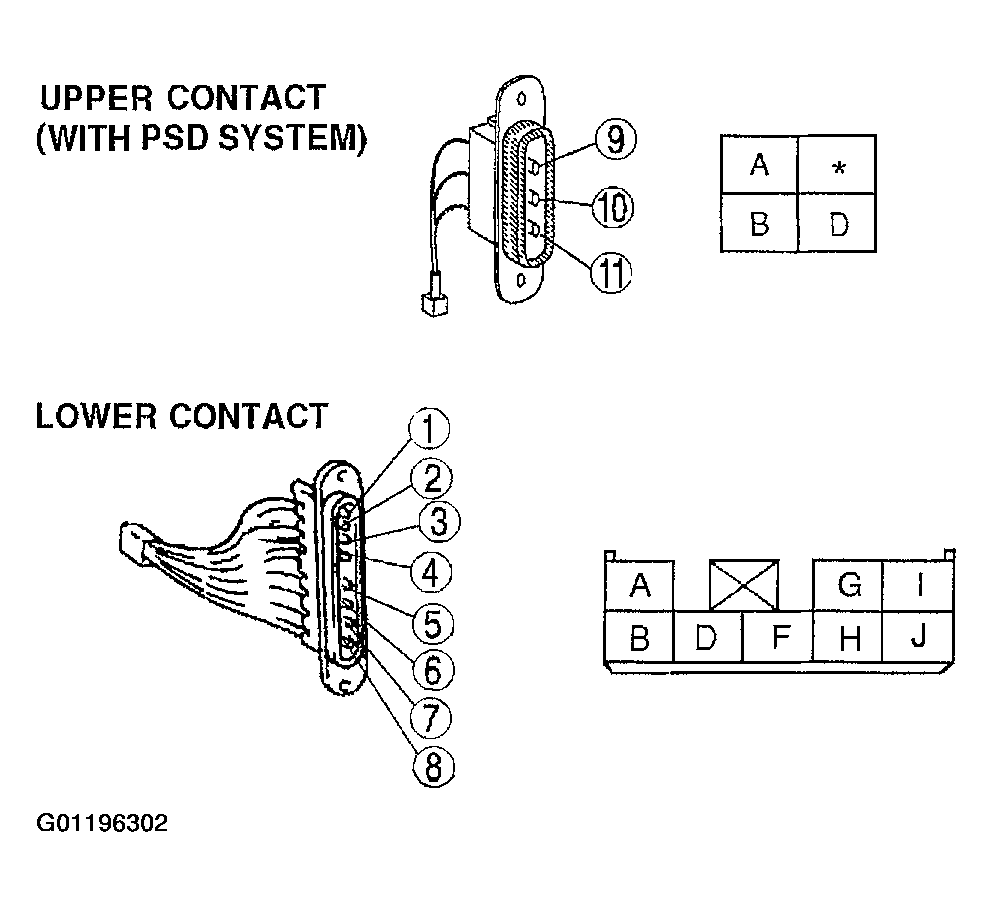

Fig 1: Inspecting Terminal Connection (Upper Contact)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Terminal Connection (Lower Contact)

Courtesy of MAZDA MOTORS CORP.

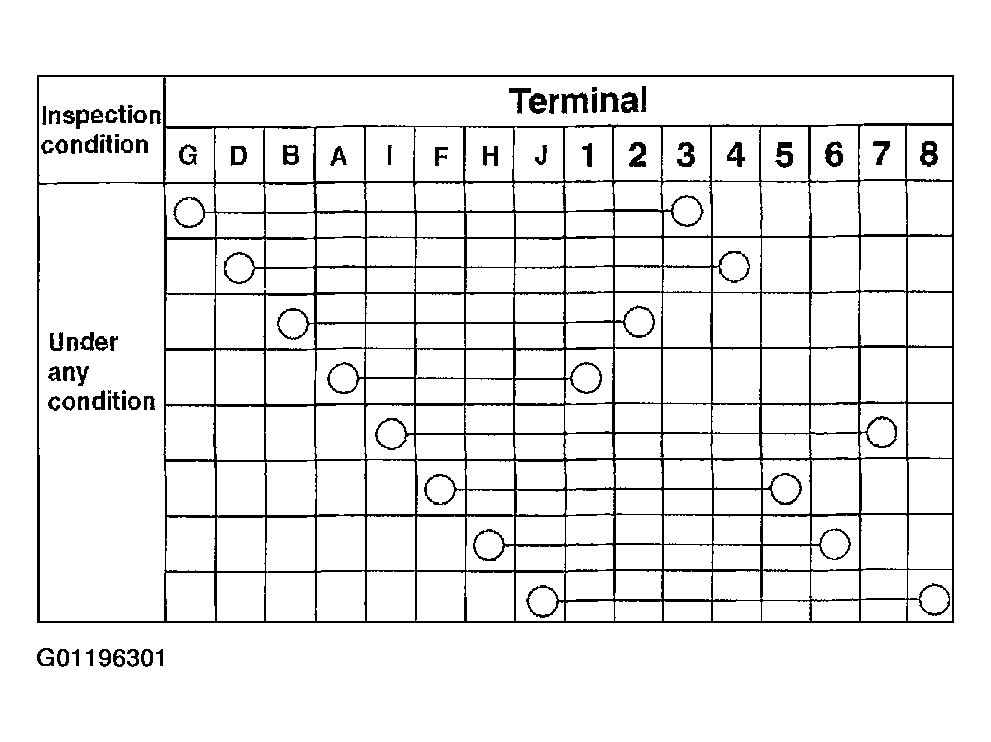

Fig 3: Inspecting Terminal Connectors

Courtesy of MAZDA MOTORS CORP.
