Removal & Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

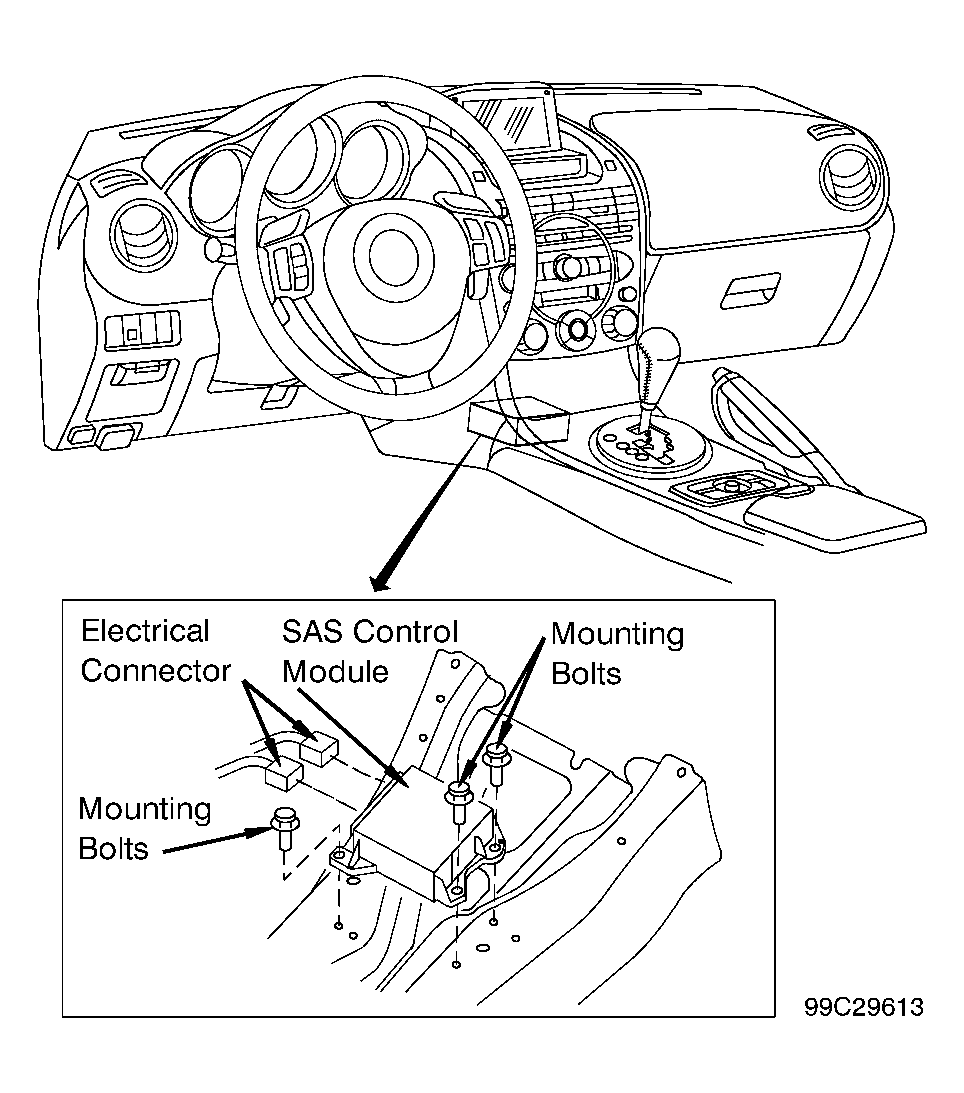

- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Remove instrument panel. See INSTRUMENT PANEL . Disconnect SAS control module electrical connectors. See Fig 1 . Remove SAS control module mounting bolts and SAS module.
- To install, reverse removal procedure. Tighten mounting bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
- If NEW SAS control module is installed, perform SAS configuration procedure. See SAS CONFIGURATION PROCEDURE . After SAS configuration procedure is completed, turn ignition switch to ON position and wait at least 20 seconds.
