Upper Arm Removal - 4x4

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a hoist.
Remove the wheel and tire assembly.
Use a suitable jack stand to support the front suspension lower arm.
Remove the pinch bolt.

Fig 1: Removing Pinch Bolt
Courtesy of MAZDA MOTORS CORP.

CAUTION: Before separating the front suspension upper arm from the front wheel knuckle, secure the front wheel knuckle to prevent it from tilting outward. Failure to do so can cause damage to the front axle shaft.
Separate the front suspension upper arm from the front wheel knuckle.
1. Remove the two nuts and alignment plates.
2. Remove the two bolts and the cams.
3. Remove the front suspension upper arm.

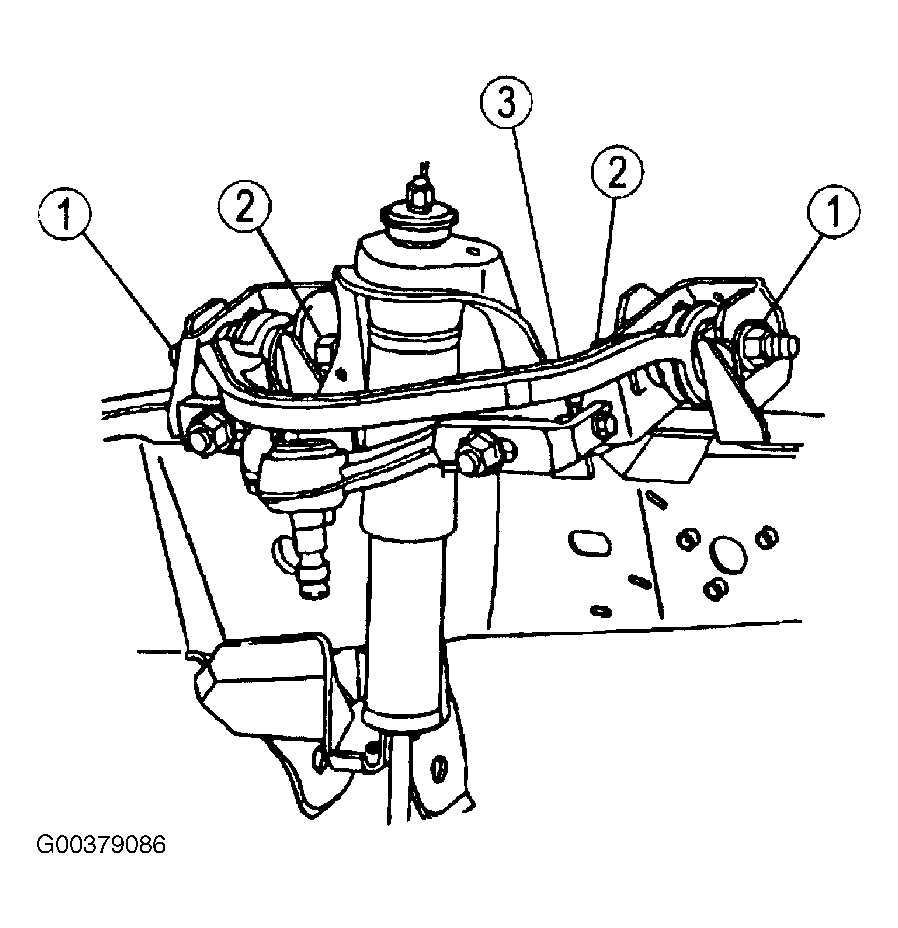

Fig 2: Separating Front Suspension Upper Arm
Courtesy of MAZDA MOTORS CORP.
