Rear Trailing Link (Upper) Ball Joint Removal Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When removing the rear trailing link (upper) ball joint, the rear knuckle bushing may also come off. If it comes off, replace the rear knuckle.

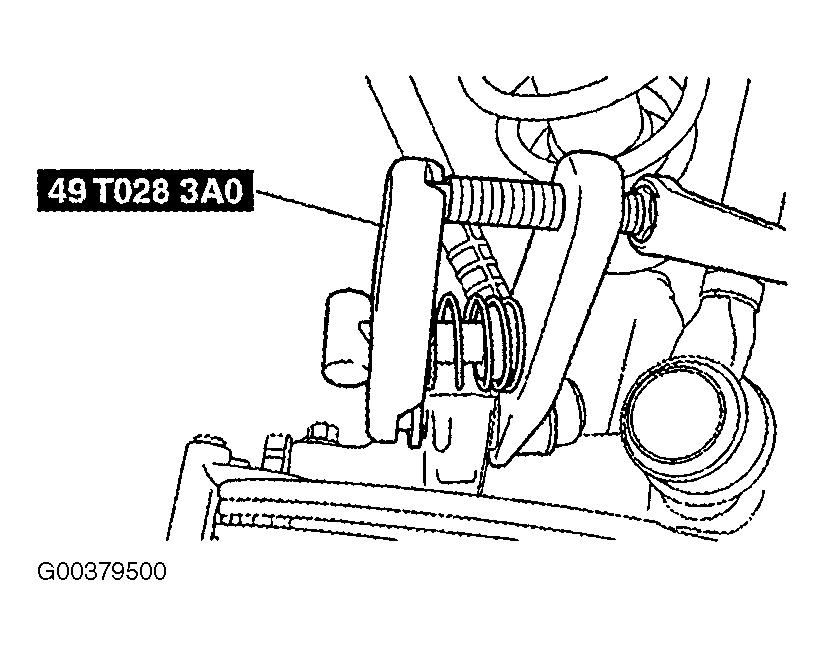

- Using the SST, disconnect the ball joint.
Courtesy of MAZDA MOTORS CORP.
