Rear Crossmember Component Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Be sure that the crossmember component is securely supported by the jack. If not securely supported, the crossmember component could fall, resulting in serious injury or death, and damage to the vehicle.
  1. Support the rear crossmember with the jack, and remove the bolt.

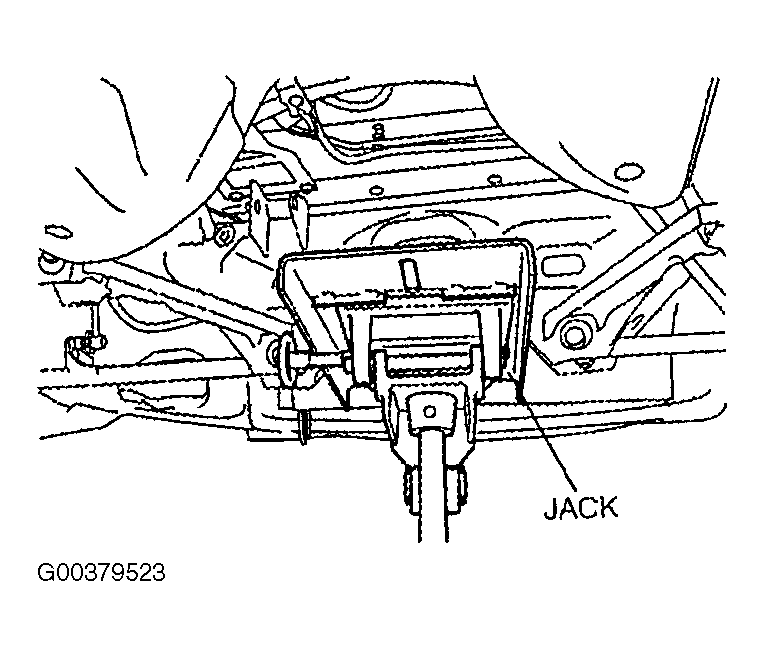

    Fig 1: Supporting Rear Crossmember Using Jack
    G00379523Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear crossmember component.
