Intermediate Shaft (3.0L): Removal: Notes

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Drain fluid from transaxle.
NOTE: If it is necessary to drain the transaxle oil, see DRAINING & REFILLING under LUBRICATION in the appropriate SERVICING article in TRANSAXLES/TRANSMISSIONS.
Remove the ABS sensor. See ABS SENSOR REMOVAL & INSTALLATION NOTE .
Remove in order indicated in the illustration. See Fig 1 .

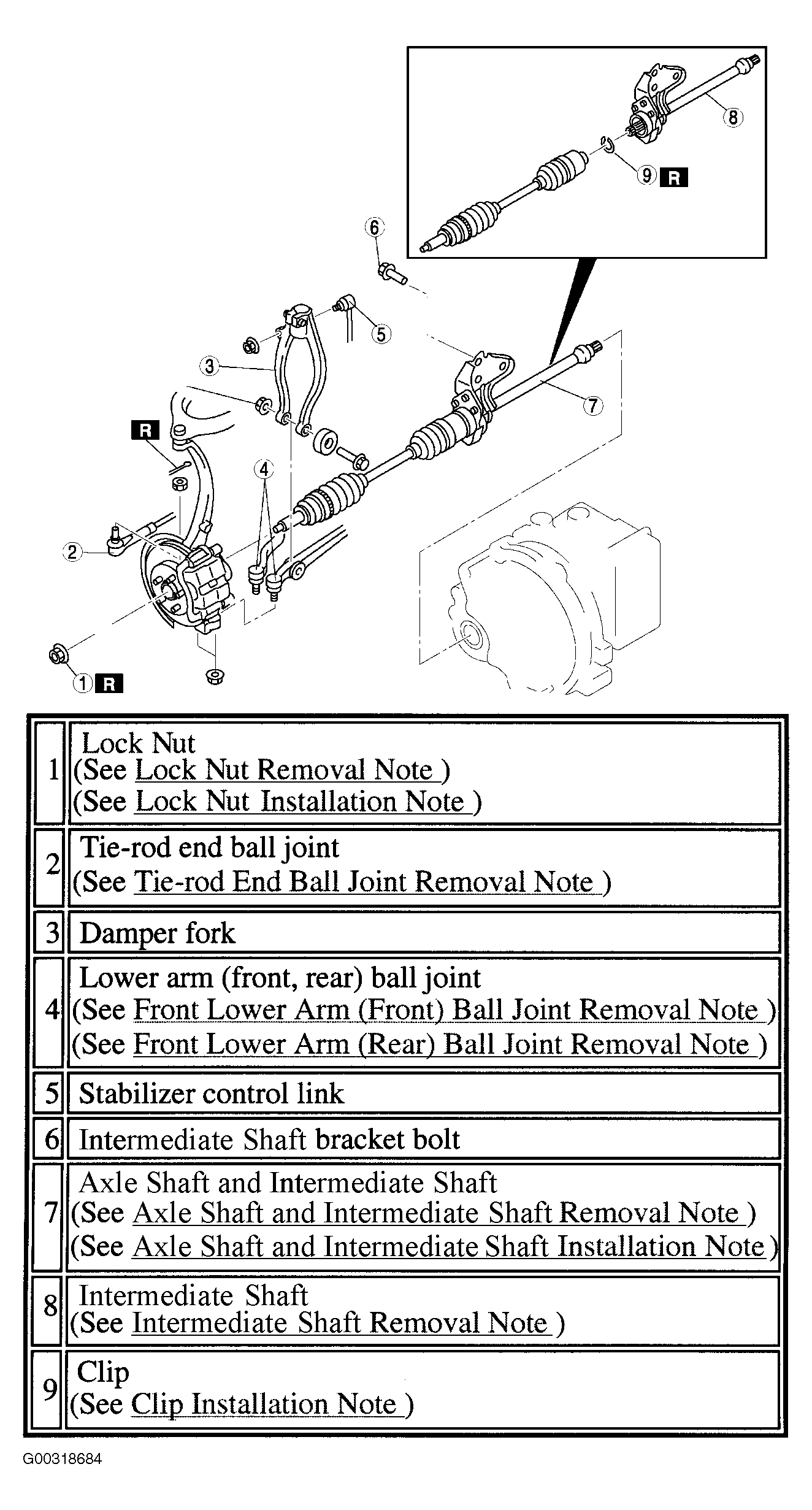

Fig 1: Exploded View Intermediate Shaft (3.0L)

Courtesy of MAZDA MOTORS CORP.
