Air Hose Installation Note

  1. install the air hose as shown in the figure.

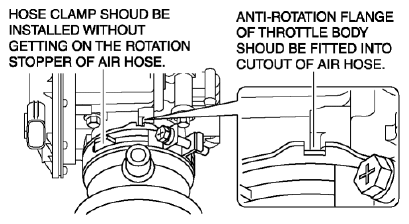

    Fig 1: Installing Air Hose
    G08150146
