Magnetic switch

  1. Inspect for continuity between terminals S and M using a tester.

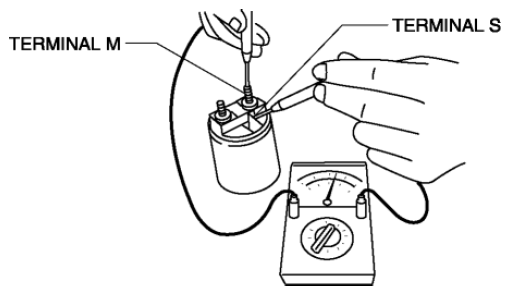

    Fig 1: Inspecting Continuity Between Magnetic Switch Terminals S And M
    G08150295
    • If there is no continuity, replace the magnetic switch.
  2. Inspect for continuity between terminal S and the body using a tester.

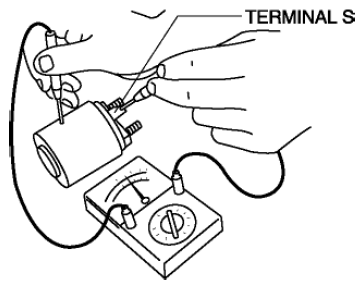

    Fig 2: Inspecting Continuity Between Magnetic Switch Terminals S And Body
    G08150296
    • If there is no continuity, replace the magnetic switch.
  3. Verify that there is no continuity between terminals M and B using a tester.

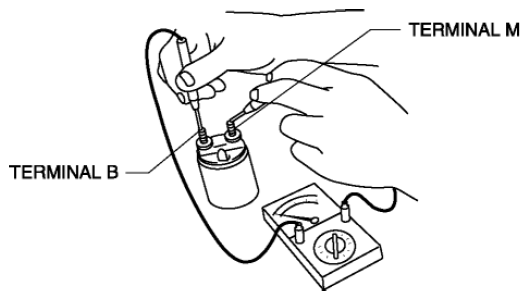

    Fig 3: Inspecting Continuity Between Magnetic Switch Terminals M And B
    G08150297
    • If there is continuity, replace the magnetic switch.
