Pinion Gap Inspection

Pull out the drive pinion with the battery positive voltage connected to terminal S and the starter body grounded.

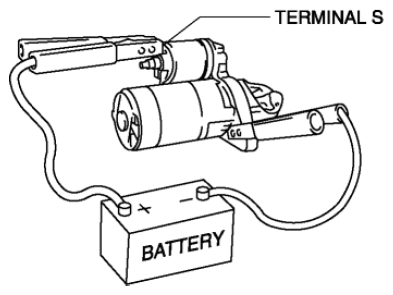

Fig 1: Connecting Battery Voltage To Terminal S And Grounding Starter Body
CAUTION:
- Applying power for more than 10 s can damage the starter. Do not apply power for more than 10 s.
Measure the pinion gap while the drive pinion is extended.

Fig 2: Measuring Pinion Gap
- If not as specified, adjust with an adjustment washer (between drive housing front cover and magnetic switch).
  Starter pinion gap
- 0.5-2.0 mm {0.02-0.07 in}
