Timing Chain Disassembly: Notes

  1. Disassemble in the order indicated in the table.

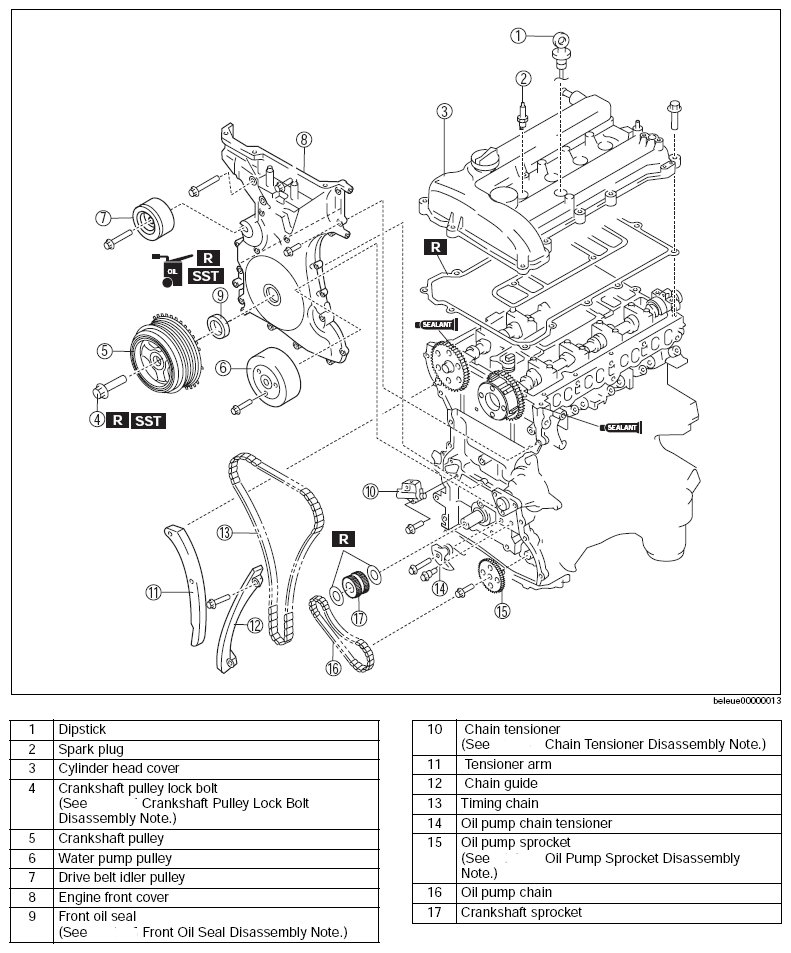

    Fig 1: Identifying Timing Chain Disassemble Order
    G08575706
