Timing Chain Assembly: Notes

  1. Assemble in the order indicated in the table.

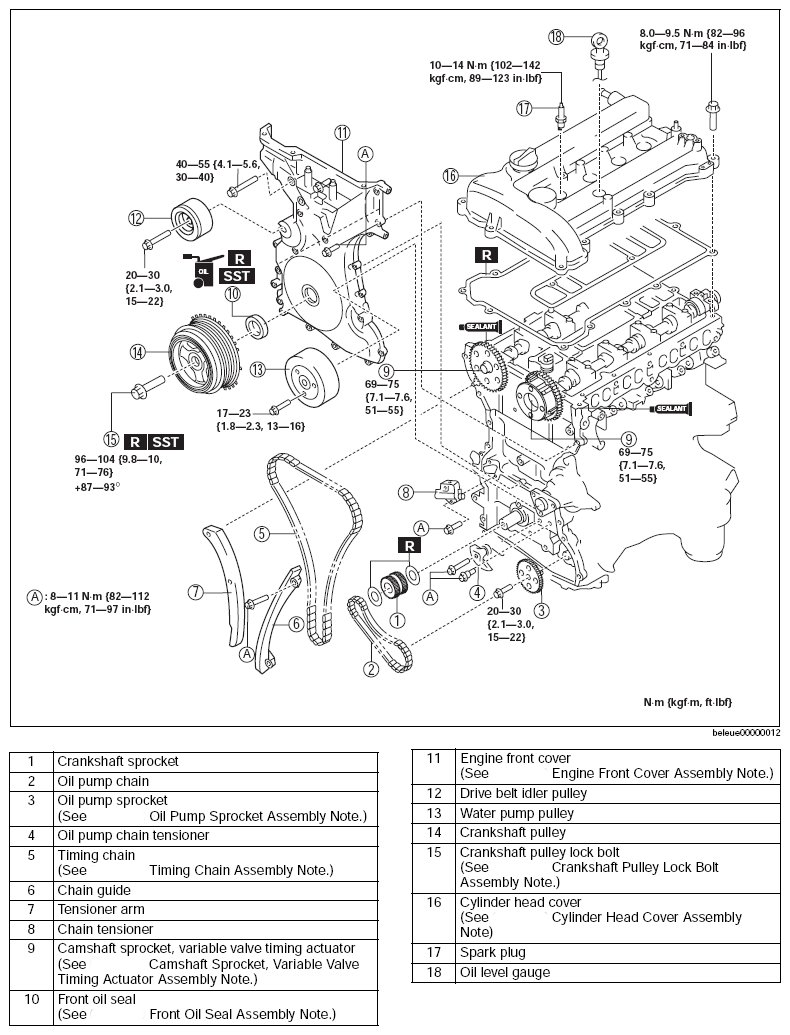

    Fig 1: Identifying Timing Chain Assembling Order
    G08575821
