Engine Front Cover Assembly Note
CAUTION:
- Install the engine front cover within 10 minutes of applying the silicone sealant.

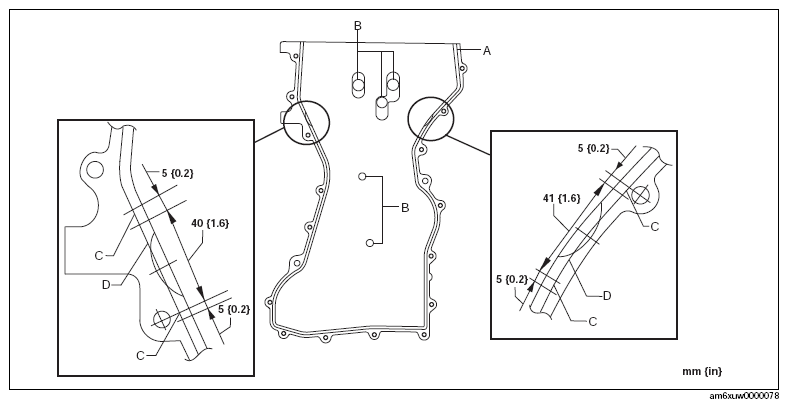

- Apply silicone sealant to the engine front cover as shown.
Thickness
- 2.2-3.2 mm {0.09-0.12 in}
- 1.5-2.5 mm {0.06-0.098 in}
- 2.2-4.3 mm {0.09-0.16 in}
- 3.3-4.3 mm {0.13-0.16 in}
- Install the cylinder head cover bolts in the order as shown in the figure.
No. Tightening torque 1-18 8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9- 101.7 in.lbf} 19-22 40-55 N.m {4.1-5.6 kgf.m, 30-40 ft.lbf}
