Cylinder Head Disassembly (II): Notes

  1. Disassemble in the order indicated in the table.

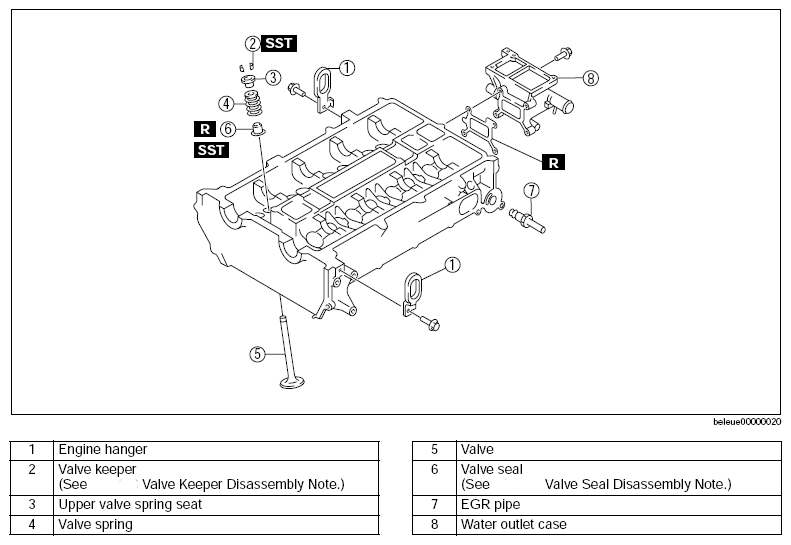

    Fig 1: Identifying Cylinder Head Disassemble Order
    G08575715
