Cylinder Head Bolt Disassembly Note

  1. Loosen the cylinder head bolts in 2-3 passes in the order shown in the figure.

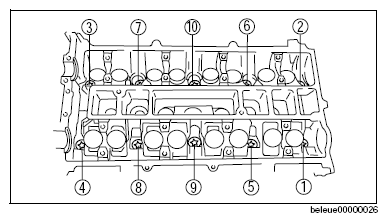

    Fig 1: Identifying Cylinder Head Bolts Loosening Order
    G08575714
