Cylinder Head Assembly (II): Notes

  1. Assemble in the order indicated in the table.

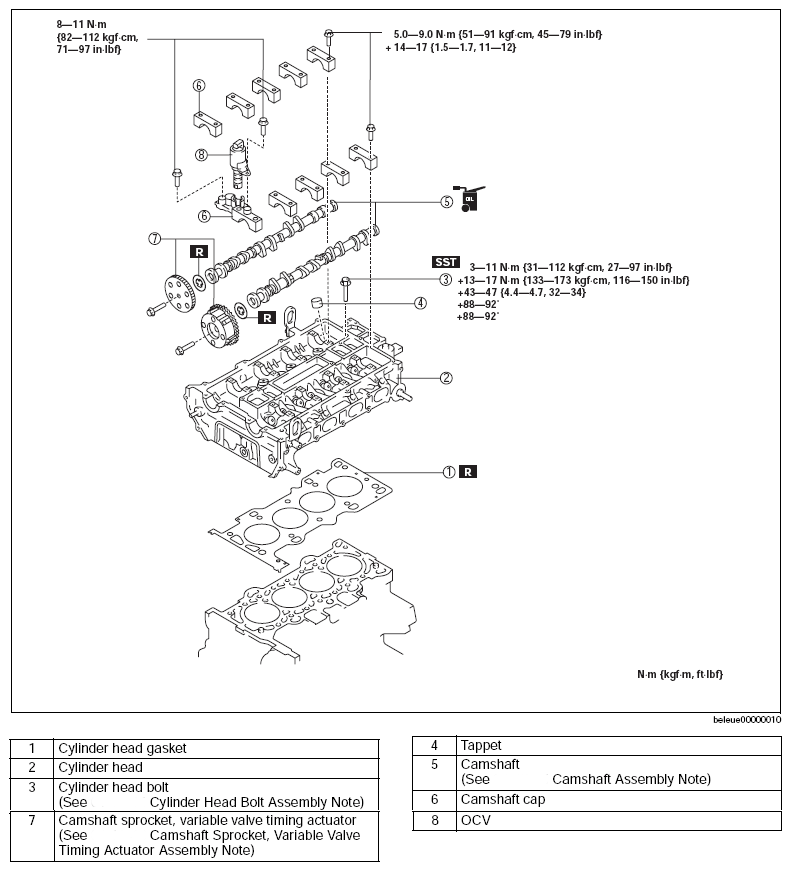

    Fig 1: Identifying Cylinder Head Assemblying Order
    G08575816
