Cylinder Head Bolt Assembly Note

  1. Tighten the cylinder head bolts in the order indicated in the figure in 5 steps. However, use the SST (49 D32 316)  in Steps  4 and  5.

    Tightening torque

    1. 3-11 N.m {31-112 kgf.cm, 27-97 in.lbf}
    2. 13-17 N.m {133-173 kgf.cm, 116-150 in.lbf}
    3. 43-47 N.m {4.4-4.7 kgf.m, 32-34 ft.lbf}
    4. 88-92°
    5. 88-92°

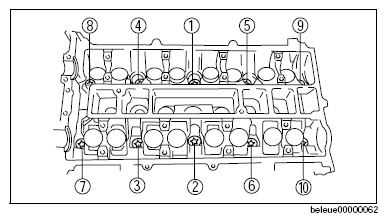

      Fig 1: Identifying Cylinder Head Bolt Tightening Order
      G08575817
