Camshaft Assembly Note

  1. Apply the gear oil (SAE No.90 or equivalent) to each journal of the cylinder head as shown in the figure.
  2. Set the cam position of No.1 cylinder at the top dead center (TDC) and install the camshaft.

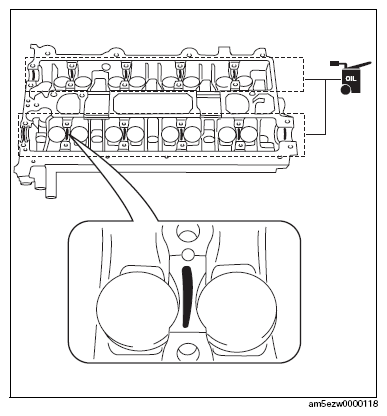

    Fig 1: Applying Gear Oil (SAE No.90 Or Equivalent) To Each Journal Of Cylinder Head
    G08575818
  3. Apply the gear oil (SAE No.90 or equivalent) to each journal of the camshaft as shown in the figure.
  4. Temporarily tighten the camshaft cap bolts evenly in 2-3 steps.
  5. Tighten the camshaft cap bolts in the order shown with the following two steps.

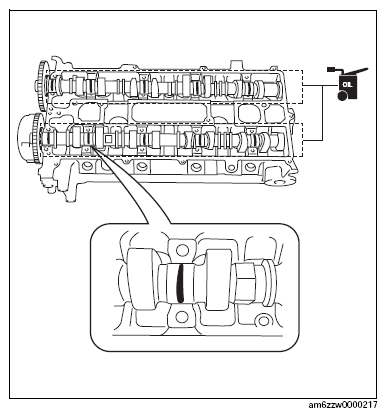

    Fig 2: Applying Gear Oil (SAE No.90 Or Equivalent) To Each Journal Of Camshaft
    G08575819

    Tighten torque

    1. 5.0-9.0 N.m {51-91 kgf.cm, 45-79 in.lbf}
    2. 14-17 N.m {1.5-1.7 kgf.m, 11-12 ft.lbf}

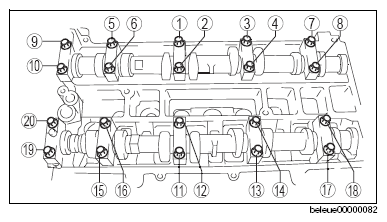

      Fig 3: Identifying Camshaft Cap Bolt Tightening Order
      G08575820
