Cylinder Block Disassembly (II): Notes

CAUTION:
  • Placing the crankshaft on a disassembly bench will cause the drive gear to contact the disassembly bench because the crankshaft drive gear is larger than the counterweight. This could result in the drive gear being scratched or damaged which could become a source of noise. Therefore, set wood blocks or similar object on the both sides of the crankshaft or place a thick clean rag under the drive gear so that the drive gear does not contact the disassembly bench directly.
  1. Disassemble in the order indicated in the table.

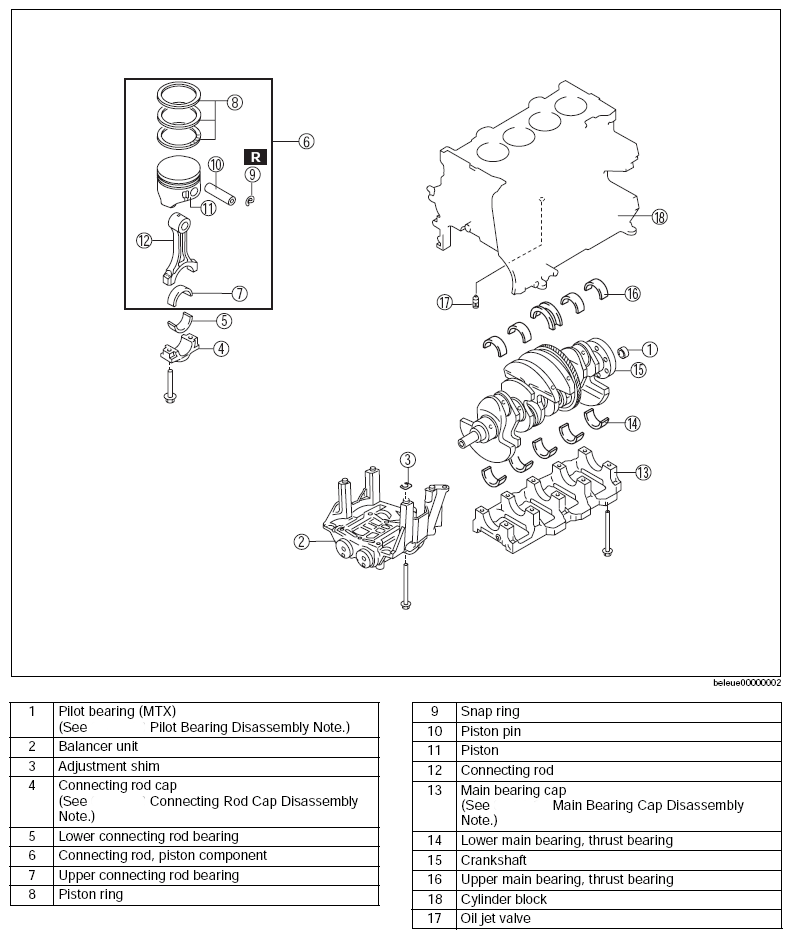

    Fig 1: Identifying Cylinder Block Disassemble Order
    G08575720
