Home >> Mazda >> 2013 >> 5 Grand Touring >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical - Overhaul - (L5) >> Cylinder Block Disassembly (I) >> Notes

Cylinder Block Disassembly (I): Notes

  1. Disassemble in the order indicated in the table.

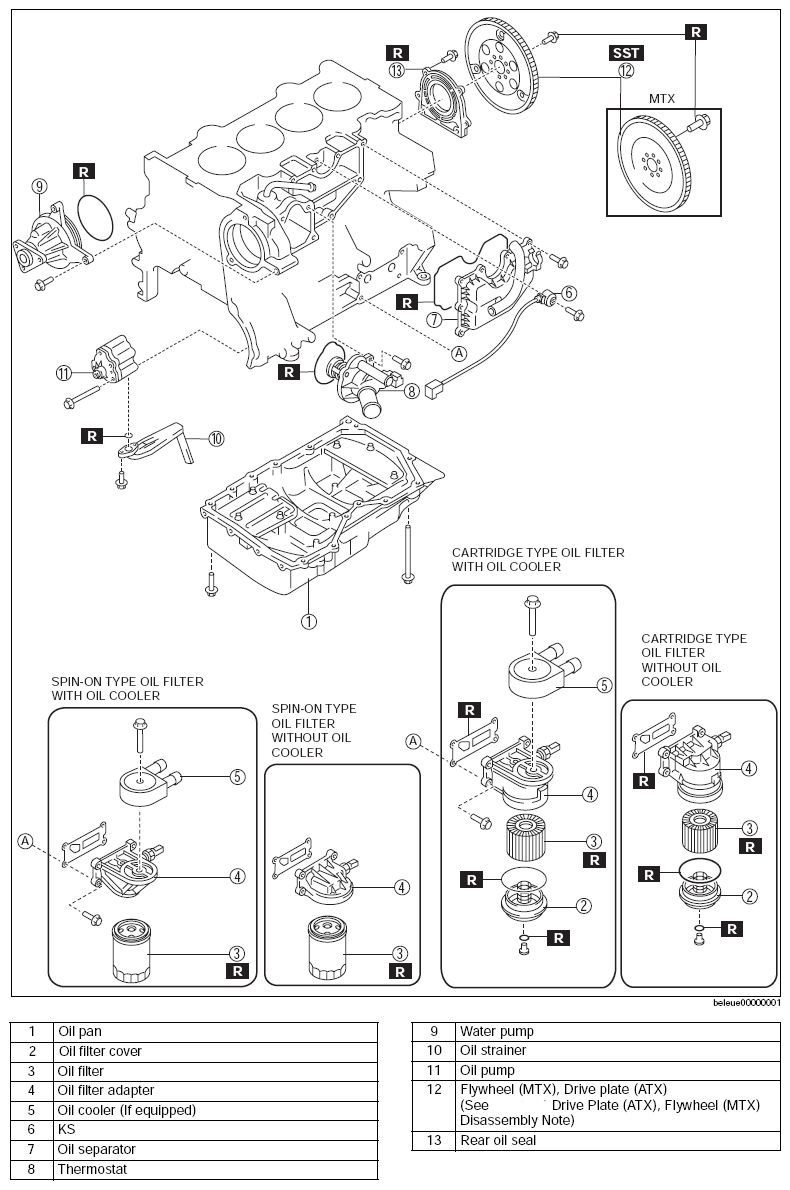

    Fig 1: Identifying Cylinder Block Disassemble Order
    G08575718
