Timing Chain Installation Note

  1. Install the SST  to the camshaft as shown.

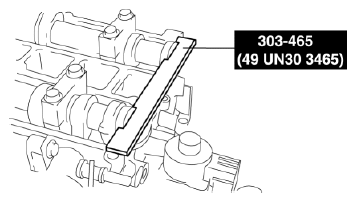

    Fig 1: Installing SST To Camshaft
    G08151931
  2. Install the timing chain.
  3. Remove the retaining wire or paper clip from the auto tensioner to apply tension to the timing chain.
