No.3 Engine Mount Installation Note

NOTE:

If the No.3 engine mount bracket and the engine are removed, retighten the No.3 engine mount stud bolts.

Tighten the No.3 engine mount stud bolts.

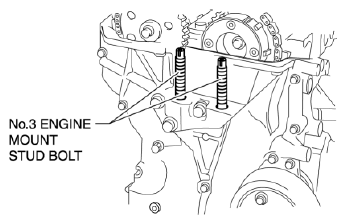

Fig 1: Identifying No.3 Engine Mount Stud Bolts

Tightening torque
- 7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}
Temporarily tighten the No.3 engine mount installation bolts and nuts.
Tighten the No.3 engine mount installation bolts and nuts in the order shown in the figure.

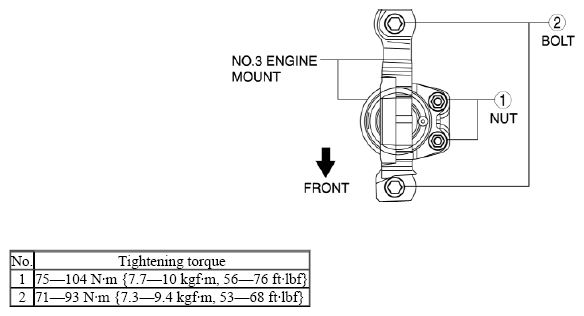

Fig 2: No.3 Engine Mount Installation Bolts And Nuts Tightening Sequence With Torque Specifications
