Cylinder Head Cover Removal Note

  1. Remove the purge solenoid valve installation bracket with the evaporative hose still connected and set it out of the way.

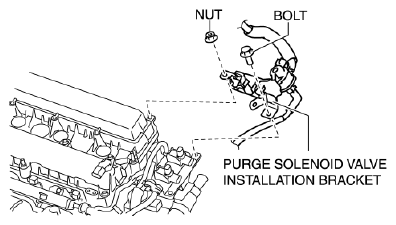

    Fig 1: Identifying Purge Solenoid Valve Installation Bracket, Nut And Bolt
    G08151919
  2. Loosen the cylinder head cover bolts in the order shown in the figure.
    Fig 2: Identifying Cylinder Head Cover Bolt Loosening Sequence
    G08151920
