Cylinder Head Cover Installation Note

Apply silicone sealant to the mating faces as shown.
CAUTION:
- Install the cylinder head cover before the applied silicone sealant starts to harden.

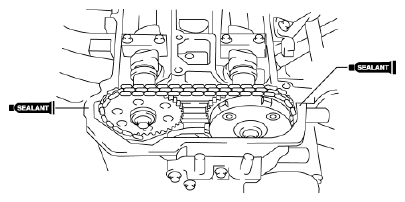

Fig 1: Identifying Silicone Sealant Application Area On Cylinder Head Cover

Thickness
- 4.0-7.0 mm {0.16-0.27 in}
Install the cylinder head cover with a new gasket.
Tighten the bolts in the order shown.

Fig 2: Identifying Cylinder Head Cover Bolts Tightening Sequence

Tightening torque
- 8.0-9.5 N.m {82-96 kgf.cm, 71-84 in.lbf}
Install the purge solenoid valve installation bracket.

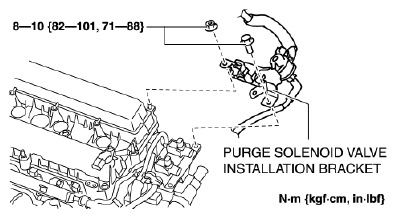

Fig 3: Purge Solenoid Valve Installation Bracket, Nut And Bolt With Torque Specifications
