Crankshaft Pulley Lock Bolt Removal Note

  1. Rotate the crankshaft in the direction of the engine rotation and remove the cylinder block lower blind plug when the No. 1 cylinder is at the point prior to top dead center (TDC) of compression, then install the SST  .
    Fig 1: Identifying SST
    G08151921
  2. Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at TDC of the compression stroke. (Until the counterweight contacts SST  and stops.)
  3. Hold the crankshaft pulley by using the SSTs  .

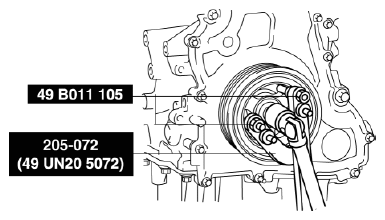

    Fig 2: Holding Crankshaft Pulley By Using SSTs
    G08151922
