Crankshaft Pulley Lock Bolt Installation Note

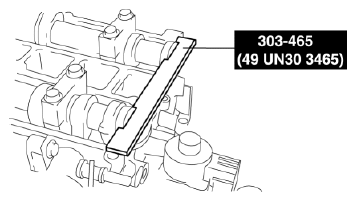

Install the SST to the camshaft as shown.

Fig 1: Installing SST To Camshaft
Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST .)

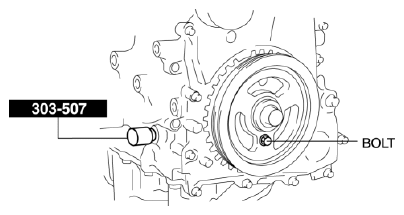

To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0) , fix the crankshaft pulley to the engine front cover.

Fig 2: Fixing Crankshaft Pulley To Engine Front Cover Using Suitable Bolt

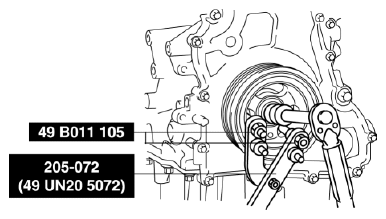

Hold the crankshaft pulley using the SSTs .

Fig 3: Holding Crankshaft Pulley Using SSTs
Tighten the crankshaft pulley lock bolt in the order shown in the following two steps using the SST (49 D032 316).
Tightening procedure
- Step 1: 96-104 N.m {9.8-10 kgf.m, 71-76 ft.lbf}
- Step 2: 87-93°
Remove the bolt (M6 X 1.0) installed to the crankshaft pulley.
Remove the SST from the camshaft.
Remove the SST from the cylinder block lower blind plug hole.
Rotate the crankshaft clockwise two turns and inspect the valve timing.
- If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 2.

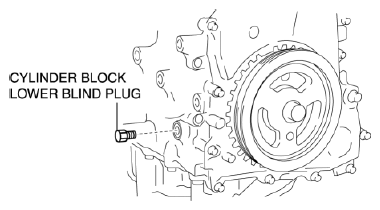

Install the cylinder block lower blind plug.

Fig 4: Identifying Cylinder Block Lower Blind Plug

Tightening torque
- 18-22 N.m {1.9-2.2 kgf.m, 14-16 ft.lbf}
