Chain Tensioner Removal Note

  1. Using a thin screwdriver, hold the chain tensioner ratchet lock mechanism away from the ratchet stem.
  2. Slowly compress the tensioner piston.
  3. Hold the tensioner piston using a 1.5 mm {0.059 in}  wire or paper clip.

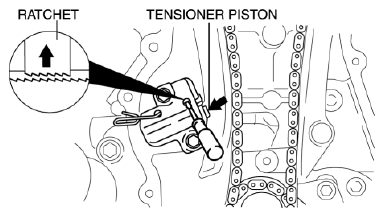

    Fig 1: Holding Tensioner Piston
    G08151929
