Rear Oil Seal Replacement: Notes

  1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

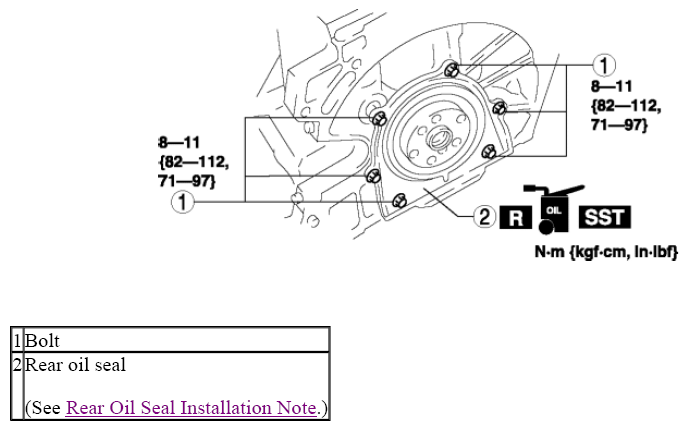

Fig 1: Rear Oil Seal And Bolts With Torque Specifications
G08151962
