Front Oil Seal Removal Note

  1. Cut the oil seal lip using a utility knife.
  2. Remove the oil seal using a screwdriver wrapped with a rag.

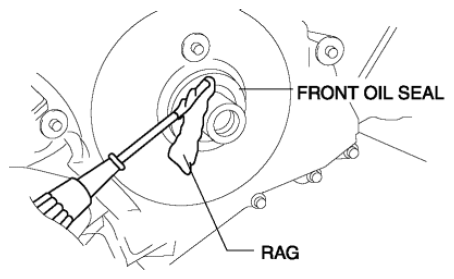

    Fig 1: Removing Oil Seal Using Screwdriver Wrapped With Rag
    G08151956
