Front Oil Seal Installation Note

Apply clean engine oil to the oil seal lip.
Push the oil seal slightly in by hand.
Tap the oil seal in evenly using the SST and a hammer.

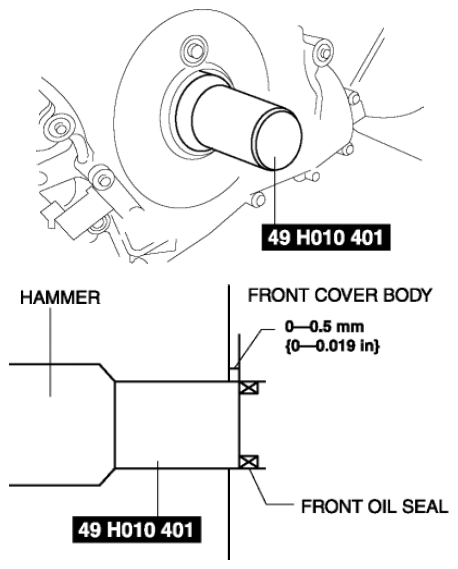

Fig 1: Installing Oil Seal

Front oil seal press-in amount
- 0-0.5 mm {0-0.019 in}
