Crankshaft Pulley Lock Bolt Removal Note

  1. Remove the cylinder block lower blind plug.
  2. Install the SST  .

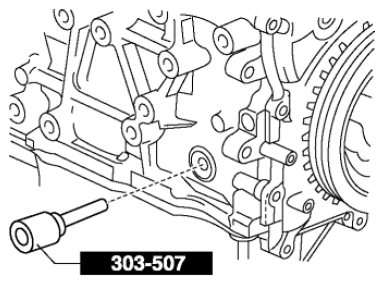

    Fig 1: Identifying SST
    G08151954
  3. Turn the crankshaft clockwise until the crankshaft is in the No.1 cylinder top dead center (TDC) position (until the balance weight is attached to the SST  ).
  4. Hold the crankshaft pulley using the SSTs  .

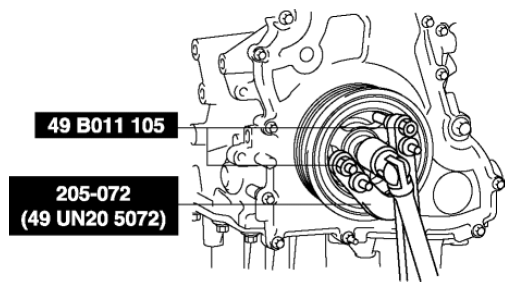

    Fig 2: Holding Crankshaft Pulley Using SSTs
    G08151955
