No.1 Engine Mount Rubber, Front Crossmember Component Removal Note

  1. Loosen the No.1 engine mount rubber installation bolt (front crossmember side) shown in the figure.

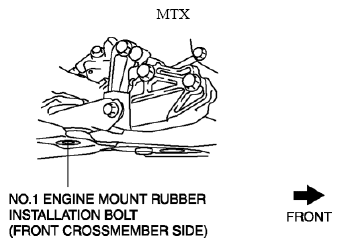

    Fig 1: Identifying No.1 Engine Mount Rubber Installation Bolt - Front Crossmember Side (MTX)
    G08151970

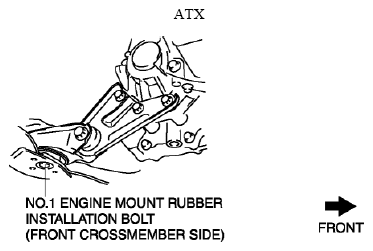

    Fig 2: Identifying No.1 Engine Mount Rubber Installation Bolt - Front Crossmember Side (ATX)
    G08151971
  2. Remove the No.1 engine mount rubber installation bolt (No.1 engine mount bracket side) shown in the figure.

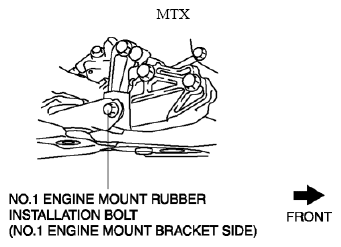

    Fig 3: Identifying No.1 Engine Mount Rubber Installation Bolt - No.1 Engine Mount Bracket Side (MTX)
    G08151972

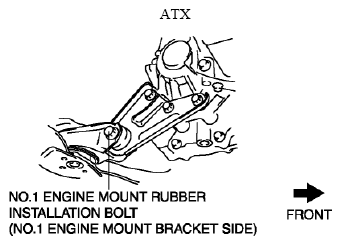

    Fig 4: Identifying No.1 Engine Mount Rubber Installation Bolt - No.1 Engine Mount Bracket Side (ATX)
    G08151973
  3. Remove the No.1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
