Engine Mount Installation Note

NOTE:
  • If the No.3 engine mount bracket and the engine are removed, retighten the No.3 engine mount stud bolts.
  1. Tighten the No. 3 engine mount stud bolts.

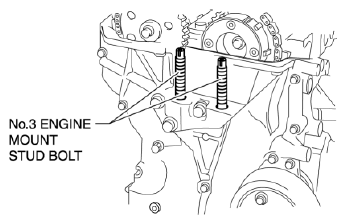

    Fig 1: Identifying No.3 Engine Mount Stud Bolts
    G08151975

    Tightening torque

    • 7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}
  2. Secure the engine and transaxle using an engine jack.
    Fig 2: Securing Engine And Transaxle Using Engine Jack
    G08151976
  3. Temporarily tighten the No.3 engine mount installation bolts and nuts.
    NOTE:
    • Do not tighten the bolts during this step.
    Fig 3: Identifying No.3 Engine Mount Installation Bolts And Nuts
    G08151977
  4. Temporarily tighten the No.4 engine mount rubber installation bolt as shown in the figure.
    Fig 4: Identifying No.4 Engine Mount Rubber Installation Bolt
    G08151978
  5. Install the No.1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
  6. Temporarily tighten the No.1 engine mount rubber installation bolts in the order shown.
    CAUTION:
    • Tighten the bolts in the order shown in the figure to prevent abnormal noise and vibration after assembly.
    • Tighten the bolts while being careful of their length to prevent interference between the steering gear housing and bolt.

    Bolt stem length

    • Front crossmember side: 62mm {2.4 in}
    • No.1 engine mount bracket side: 65mm {2.6 in}
    Fig 5: Identifying No.1 Engine Mount Bracket And Bolt (MTX)
    G08151979
    Fig 6: Identifying No.1 Engine Mount Bracket And Bolt (ATX)
    G08151980
  7. Tighten the No.3 engine mount installation bolts and nuts in the order shown in the figure.
    Fig 7: No.3 Engine Mount Installation Bolts And Nuts Tightening Sequence With Torque Specifications
    G08151981
  8. Tighten the No.4 engine mount rubber installation bolt.
    Fig 8: Identifying No.4 Engine Mount Rubber Installation Bolt
    G08151982

    Tightening torque

    • 94-152 N.m {9.6-15 kgf.m, 70-112 ft.lbf}
  9. Tighten the No.1 engine mount rubber installation bolts in the order shown.
    CAUTION:
    • Tighten the bolts in the order shown in the figure to prevent abnormal noise and vibration after assembly.
    Fig 9: Identifying No.1 Engine Mount Bracket And Bolt (MTX)
    G08151983
    Fig 10: Identifying No.1 Engine Mount Bracket And Bolt (ATX)
    G08151984

    Tightening torque

    • 73-90 N.m {7.5-9.1 kgf.m, 54-66 ft.lbf}
