Cylinder Head Removal Note

  1. Loosen the cylinder head bolts in 2-3 steps in the order shown in the figure.

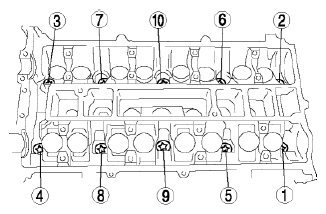

    Fig 1: Identifying Cylinder Head Bolts Loosening Sequence
    G08151946
