Cylinder Head Gasket Installation Note

  1. Apply silicone sealant to the areas shown in the figure.
    CAUTION: Install the cylinder head gasket and cylinder head before the applied silicone sealant starts to harden.

    Thickness 4-7 mm {0.16-0.27 in}

  2. Install the cylinder block with a new cylinder head gasket.
    Fig 1: Identifying Cylinder Head Gasket Sealant Application Areas
    G00535430Courtesy of MAZDA MOTORS CORP.
  3. Apply silicone sealant to the areas shown in the figure.

    Thickness 4-7 mm {0.16-0.27 in}

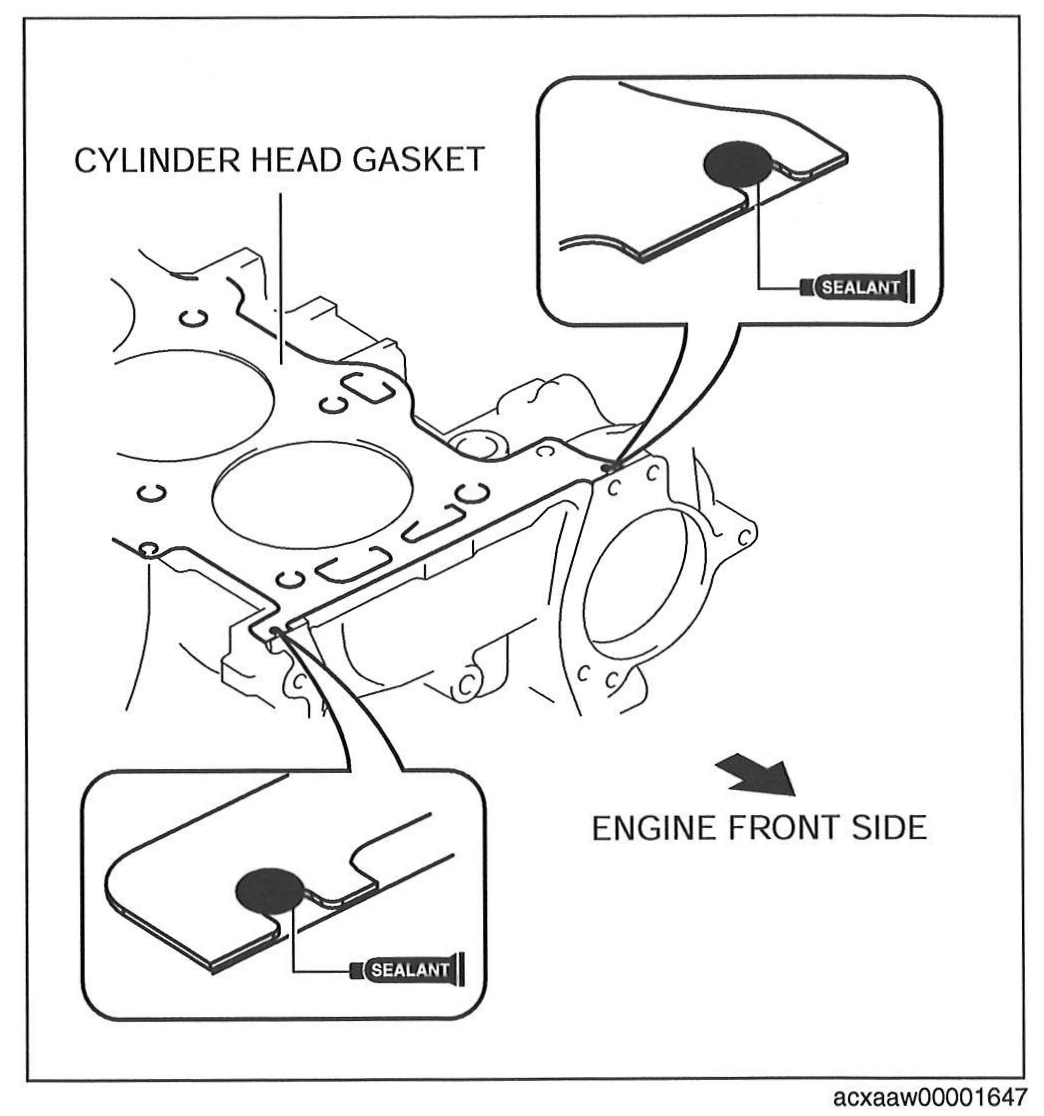

    Fig 2: Cylinder Head Gasket Installation Procedure
    G00535431Courtesy of MAZDA MOTORS CORP.
  4. Install the cylinder head refering to the Cylinder Head Installation Note.
