Exhaust System Insulator Removal/installation Note: Notes

  1. Remove the member.
    Fig 1: Member Bolts With Torque Specifications
    G08150194
  2. Remove the exhaust system insulator in the order shown in the figure.
  3. Install in the reverse order of removal.

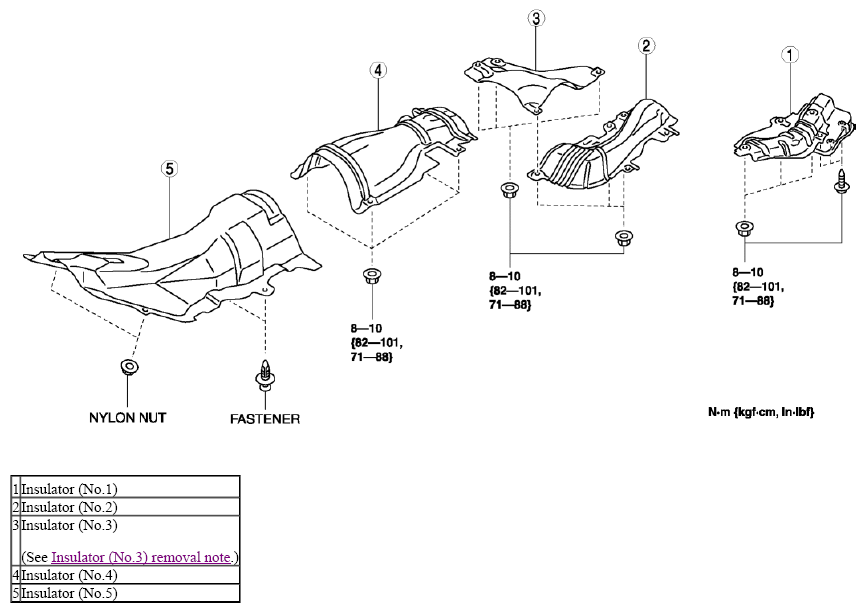

    Fig 2: Exhaust System Insulator Fastener And Nylon Nuts With Torque Specifications
    G08150195
