Radiator Mount Removal Note

  1. While pressing the radiator mount tab in the direction of the arrow shown in the figure, lift the radiator mount.

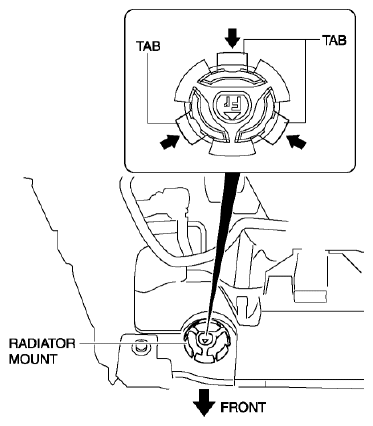

    Fig 1: Pressing Radiator Mount Tab
    G08150132
  2. Remove the radiator mount.
