Radiator Mount Installation Note
Install the radiator mount so that the arrow on it is pointed toward the front of the vehicle.

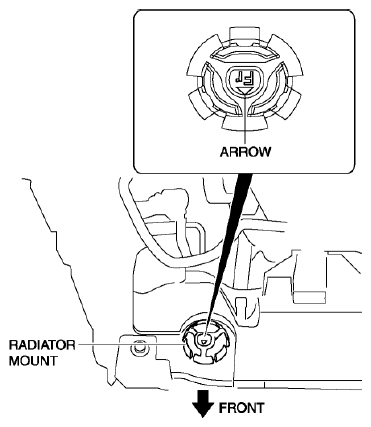

Fig 1: Installing Radiator Mount Arrow
