Part Inspection
- Verify that the battery is fully charged. (See BATTERY INSPECTION [MZR 2.5] .)
- Disconnect the cooling fan motor connector (2 terminals).

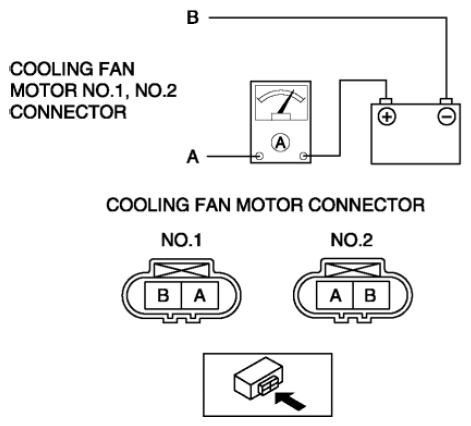

- Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.
- Verify that each cooling fan motor operates smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
Cooling fan motor No.1, No.2 standard current
- No.1: 4.7-8.7 A [12 V]
- No.2: 7.4-11.4 A [12 V]
