Purge Solenoid Valve Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Remove in the order indicated in the table.

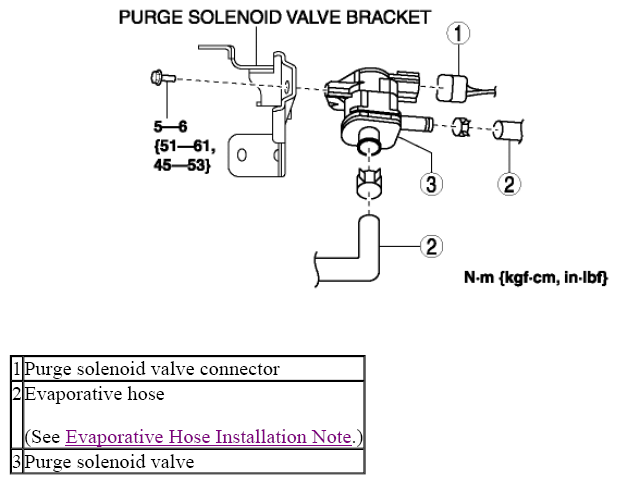

    Fig 1: Purge Solenoid Valve Replacement Components With Torque Specifications
    G08150229
  4. Install in the reverse order of removal.
