Positive Crankcase Ventilation (PCV) Valve Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] )
  3. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

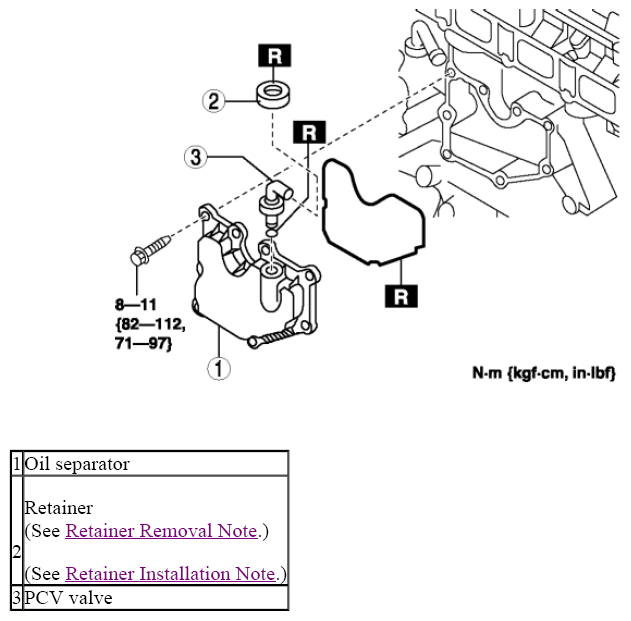

    Fig 1: Positive Crankcase Ventilation (PCV) Valve Replacement Components With Torque Specifications
    G08150234
  5. Install in the reverse order of removal.
