Engine Compartment Side

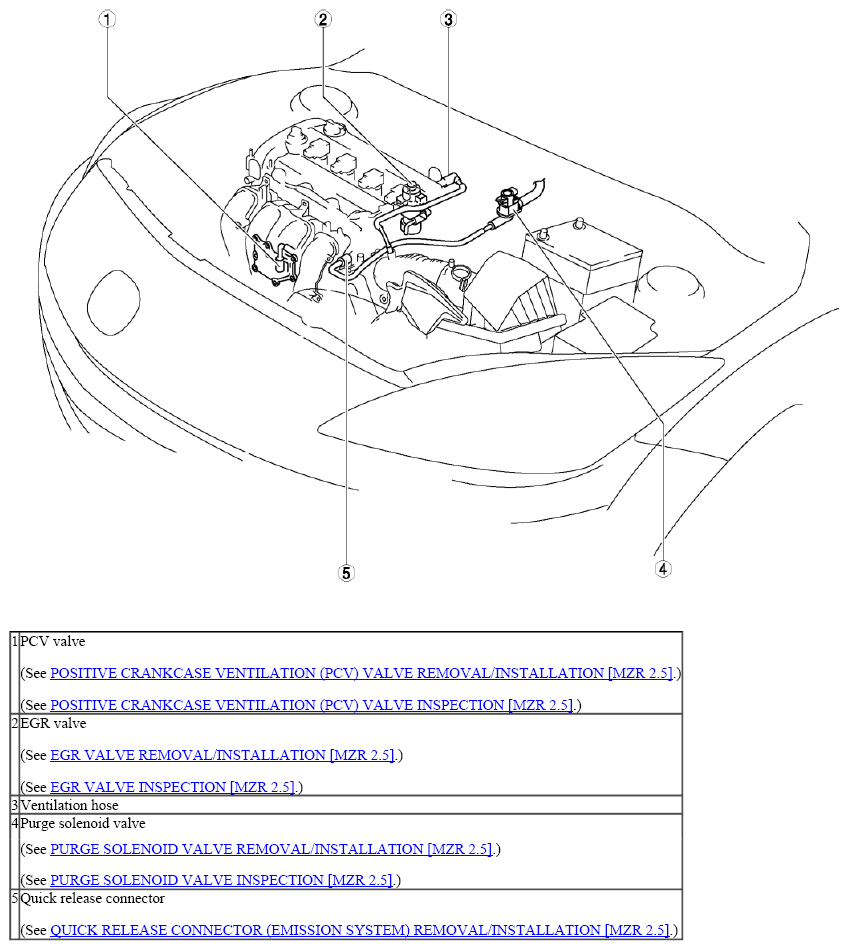

Fig 1: Identifying Emission System Component Locations (Engine Compartment Side)

G08150213
