Charcoal Canister Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Remove the charcoal canister protector.

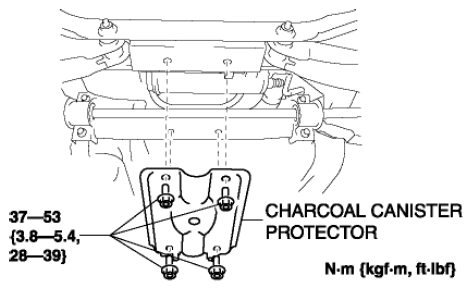

    Fig 1: Charcoal Canister Protector And Bolts With Torque Specification
    G08150220
  4. Remove the CV solenoid valve. (See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.

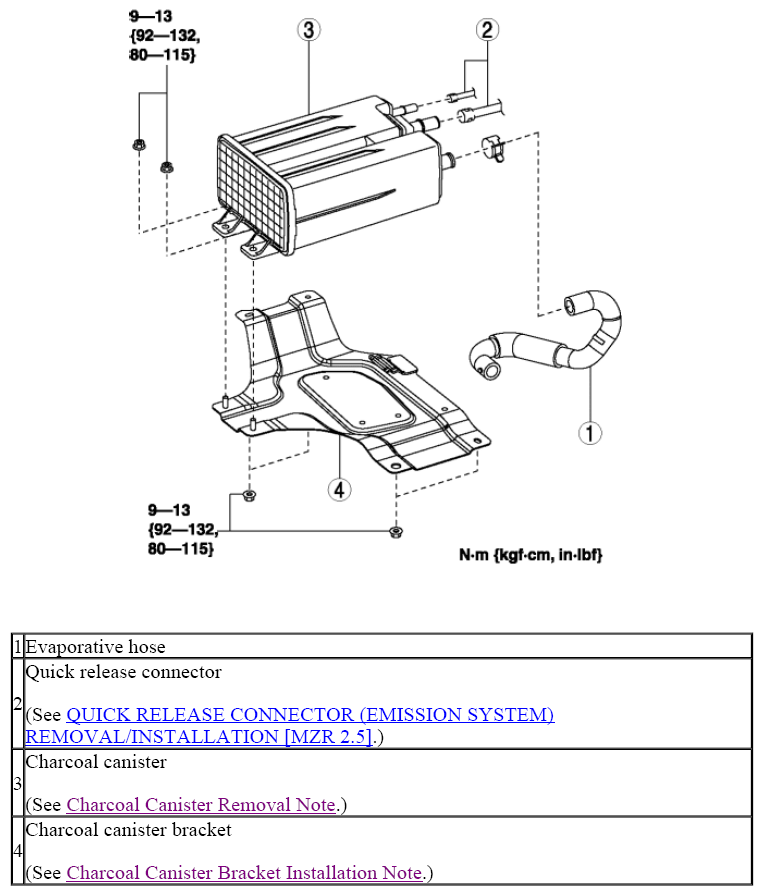

    Fig 2: Charcoal Canister Protector Components With Torque Specification
    G08150221
  6. Install in the reverse order of removal.
