Charcoal Canister Bracket Installation Note

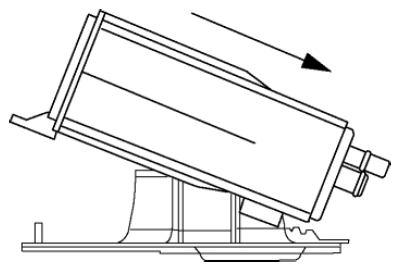

  1. Insert the charcoal canister completely into the bracket.
    Fig 1: Inserting Charcoal Canister Into Bracket
    G08150222
  2. Install the charcoal canister as shown in the figure.
    Fig 2: Charcoal Canister With Torque Specification
    G08150223
