Using the M-MDS

Connect the M-MDS (IDS) to the DLC-2.
After the vehicle is identified, select the following items from the initialization screen of the IDS.
1. Select "DataLogger".
2. Select "Modules".
3. Select "IC".

Verify that the warning/indicator lights in the following table illuminate using "WL+IL".

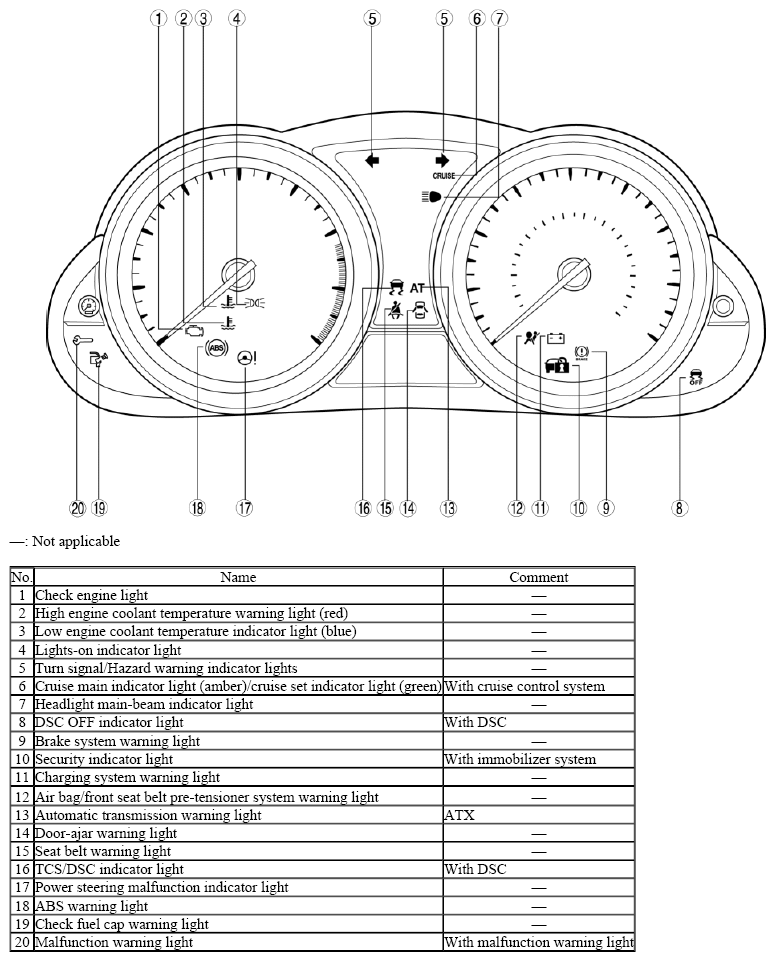

Fig 1: Identifying Warning/Indicator Lights Of Instrument Cluster

-: Not applicable

No.	Name	Comment
1	Check engine light	-
2	High engine coolant temperature warning light (red)	-
3	Low engine coolant temperature indicator light (blue)	-
4	Lights-on indicator light	-
5	Turn signal/Hazard warning indicator lights	-
6	Cruise main indicator light (amber)/cruise set indicator light (green)	With cruise control system
7	Headlight main-beam indicator light	-
8	DSC OFF indicator light	With DSC
9	Brake system warning light	-
10	Security indicator light	With immobilizer system
11	Charging system warning light	-
12	Air bag/front seat belt pre-tensioner system warning light	-
13	Automatic transmission warning light	ATX
14	Door-ajar warning light	-
15	Seat belt warning light	-
16	TCS/DSC indicator light	With DSC
17	Power steering malfunction indicator light	-
18	ABS warning light	-
19	Check fuel cap warning light	-
20	Malfunction warning light	With malfunction warning light
