5 Grand Touring
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
On-Board Diagnostic [Instrument Cluster]
>>
On-Board Diagnostic Wiring Diagram [Instrument Cluster]
On-Board Diagnostic Wiring Diagram [Instrument Cluster]

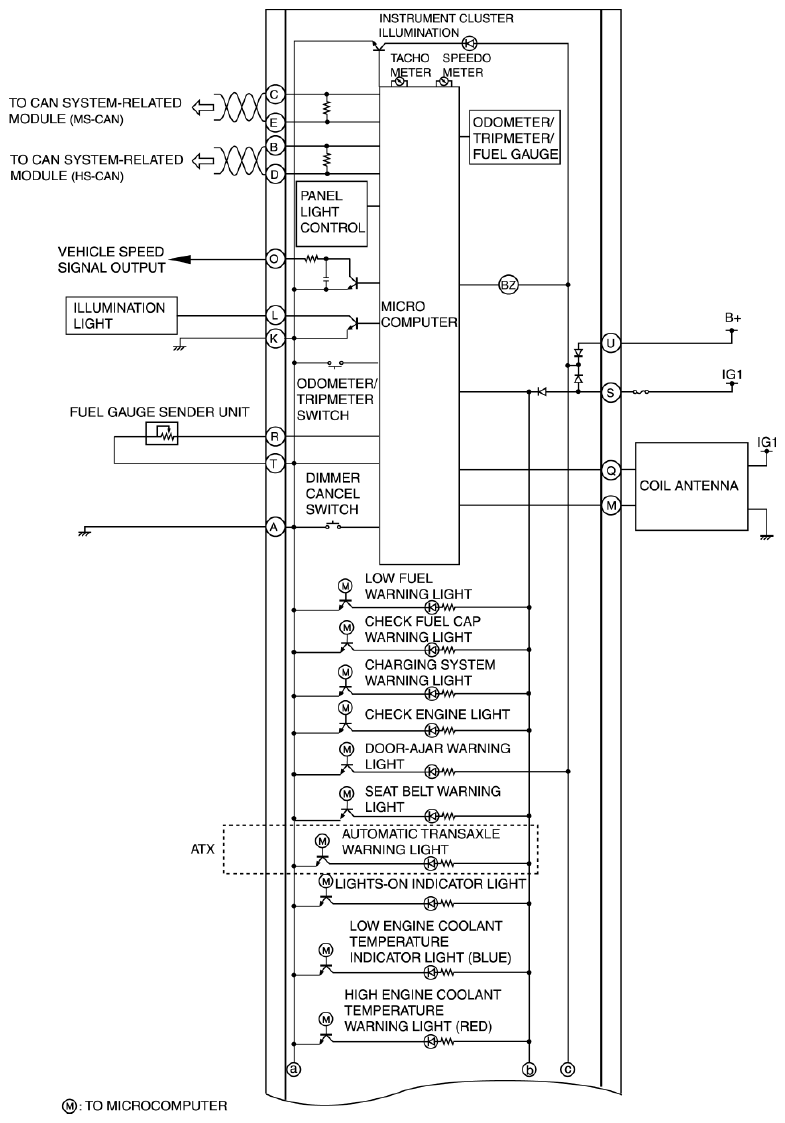

Fig 1: On-Board Diagnostic (Instrument Cluster) - Wiring Diagram (1 Of 3)

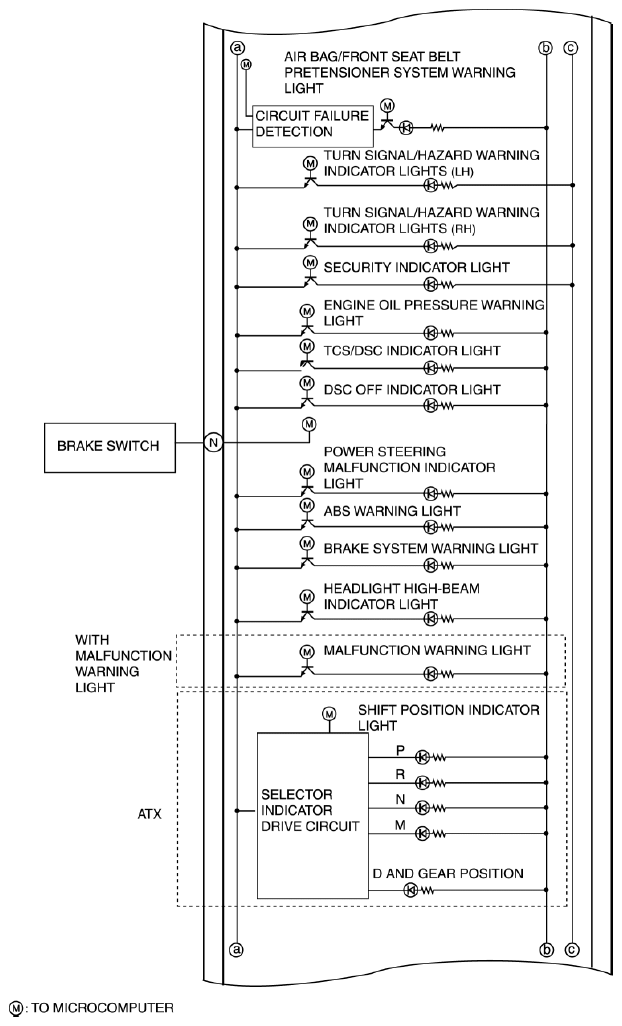

Fig 2: On-Board Diagnostic (Instrument Cluster) - Wiring Diagram (2 Of 3)

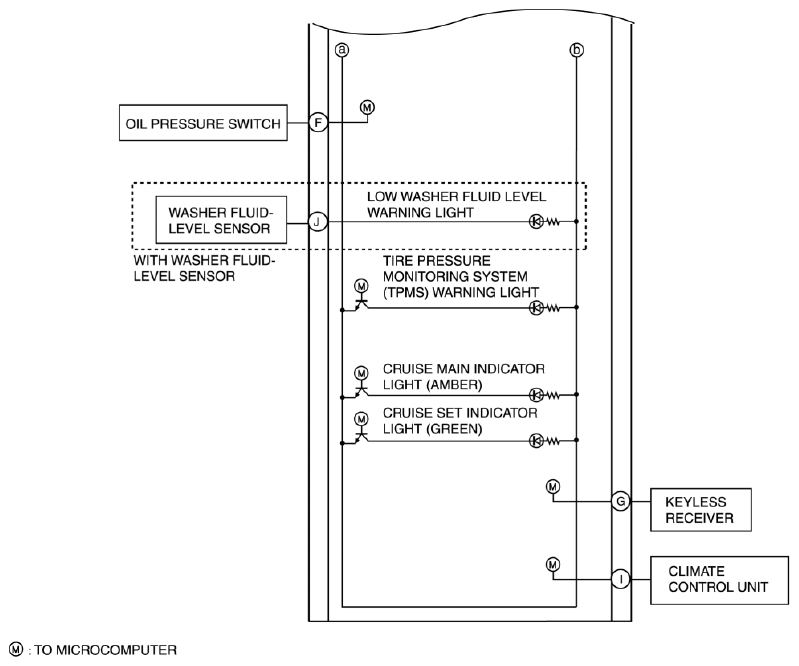

Fig 3: On-Board Diagnostic (Instrument Cluster) - Wiring Diagram (3 Of 3)
