| POSSIBLE CAUSE |
- Battery malfunction
- Generator malfunction
- Instrument cluster connector or terminals malfunction

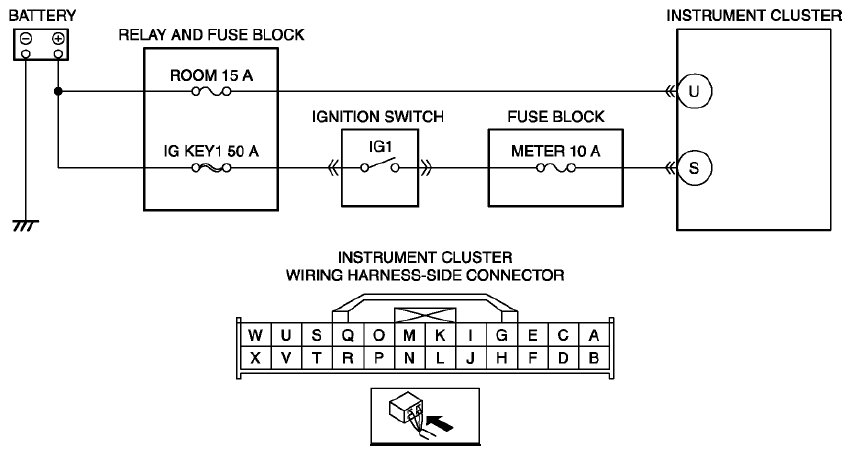

- Open circuit or short to ground in instrument cluster power supply circuit
- Short to ground in wiring harness between the following:
- ROOM 15 A fuse-Instrument cluster terminal U
- METER 10 A fuse-Instrument cluster terminal S
- ROOM 15 A fuse malfunction
- METER 10 A fuse malfunction
- Open circuit in wiring harness between the following terminals:
- Battery positive terminal-Instrument cluster terminal U
- Battery positive terminal-Instrument cluster terminal S
- Instrument cluster malfunction
|
