PCM Cover No.1 Installation Note

  1. Install with PCM cover No.1 hooks B aligned with the PCM cover No.2 holes at two points.

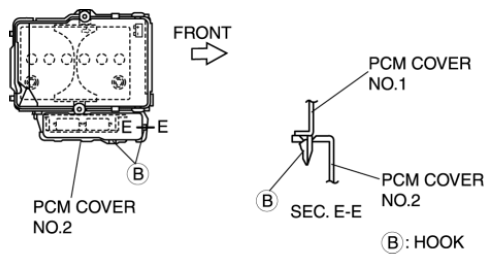

    Fig 1: Identifying PCM Cover No.1 Hooks B With PCM Cover No.2 Holes
    G08150253
  2. Install the PCM cover No.1 to the PCM cover No.2 hook.

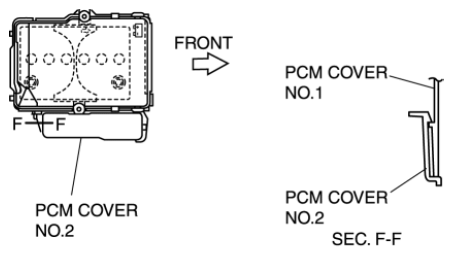

    Fig 2: Identifying PCM Cover No.1 And PCM Cover No.2 Hook
    G08150254
